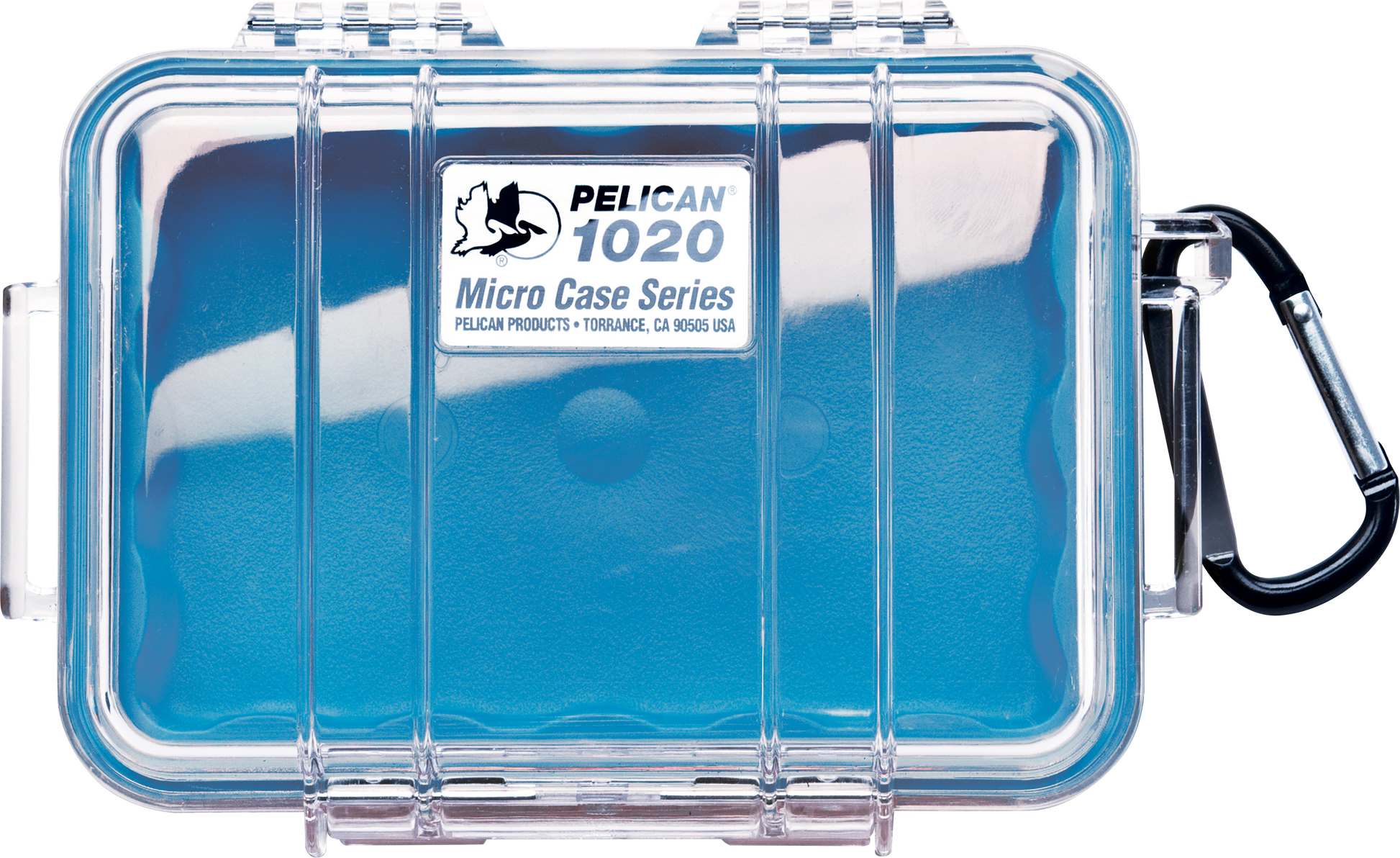

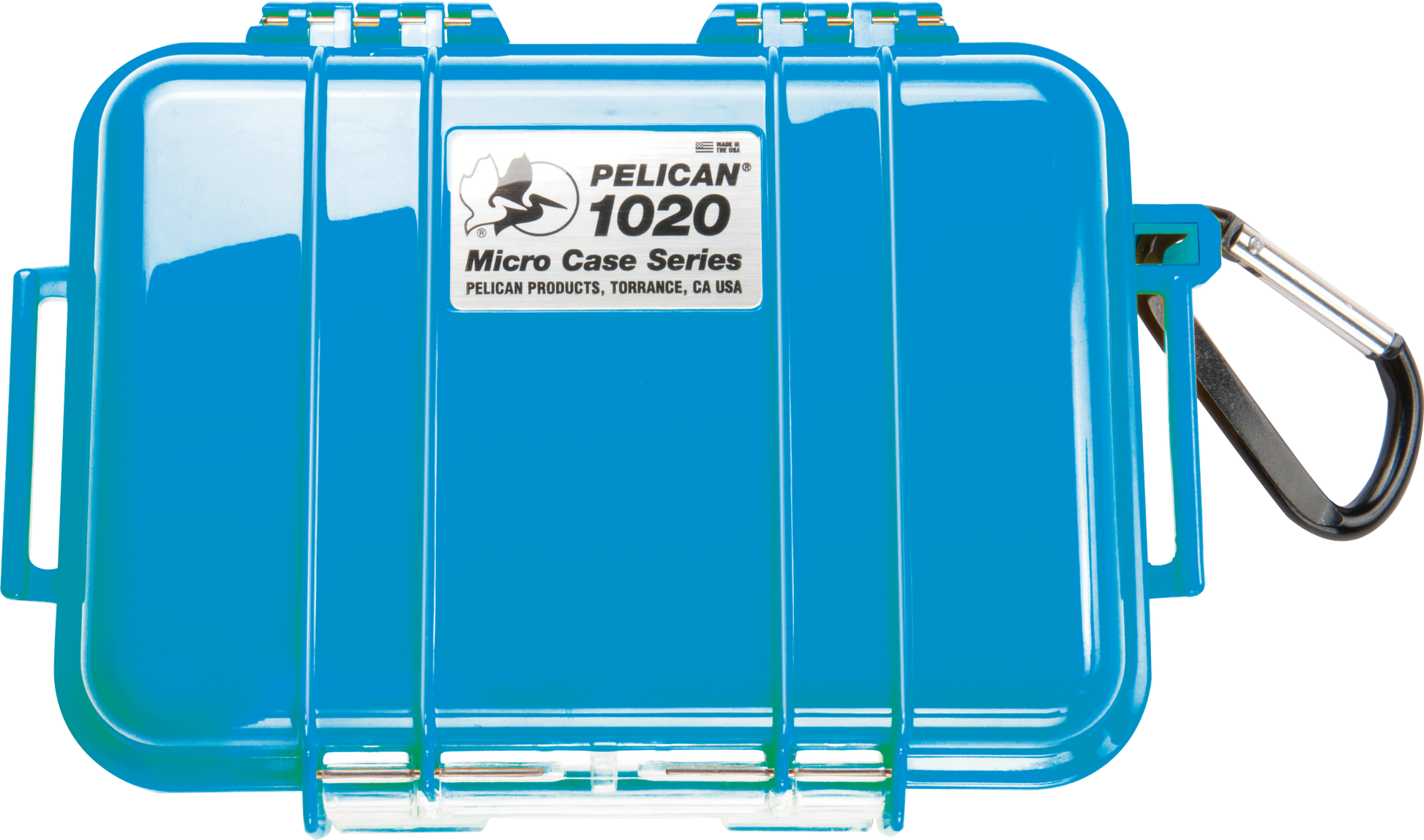

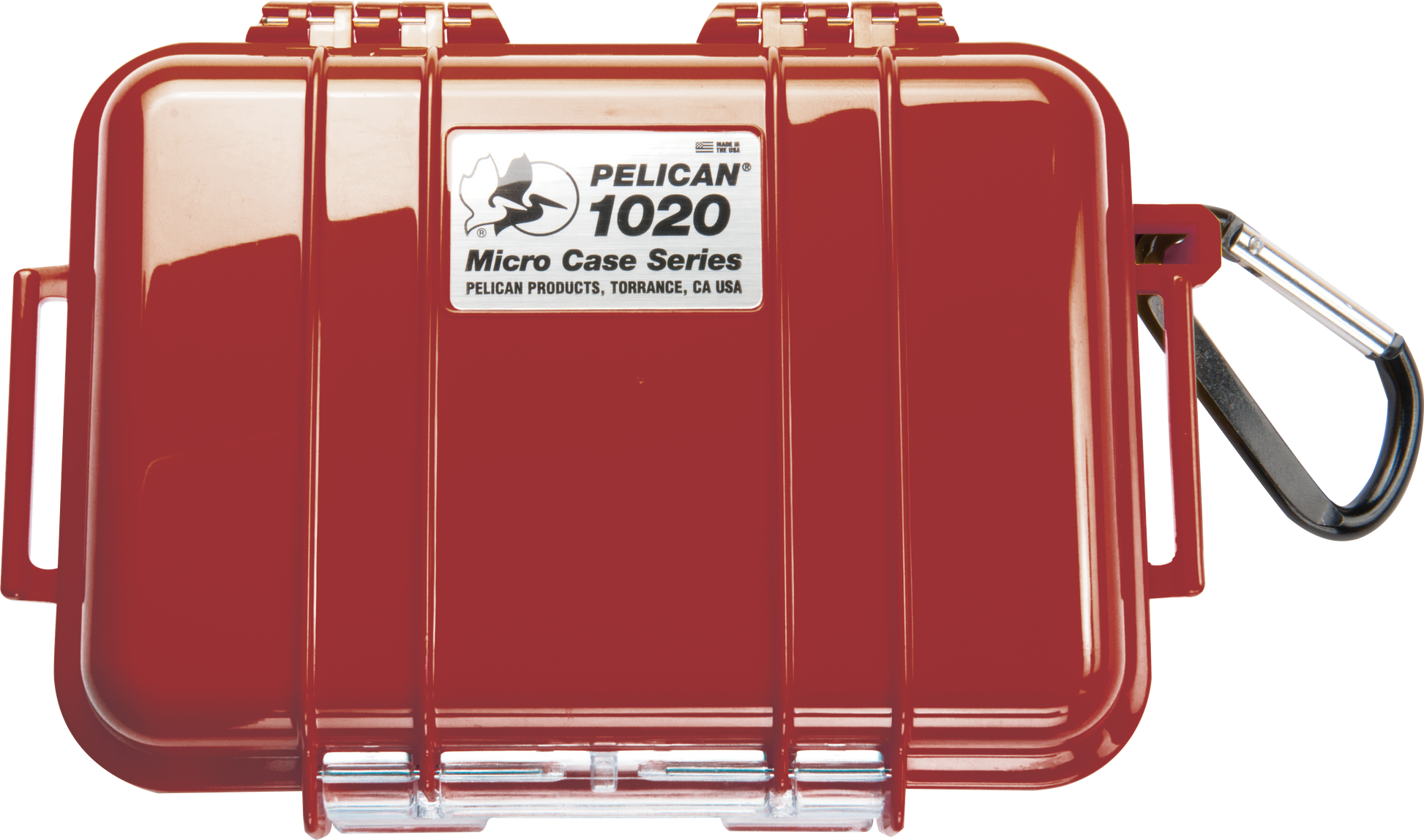

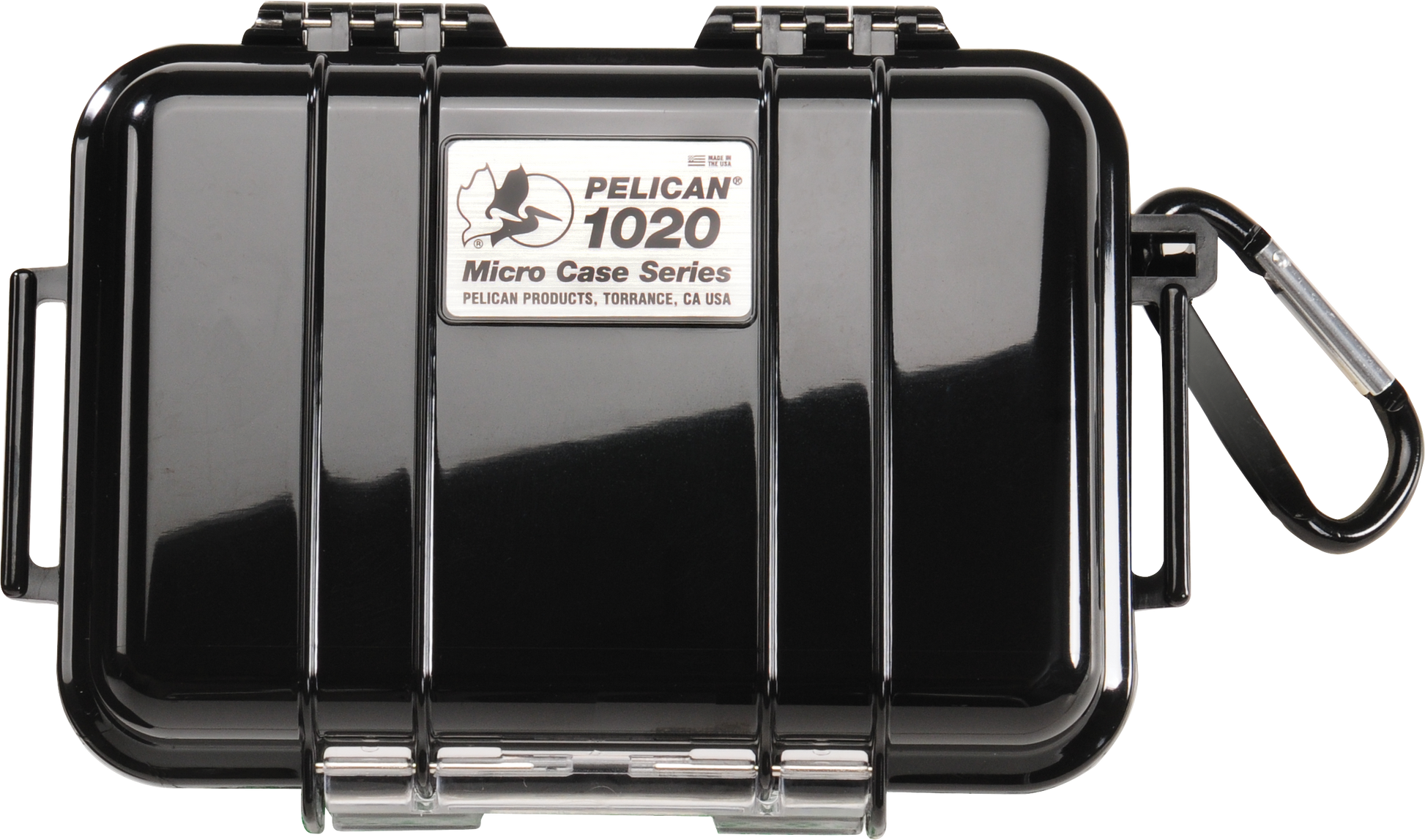

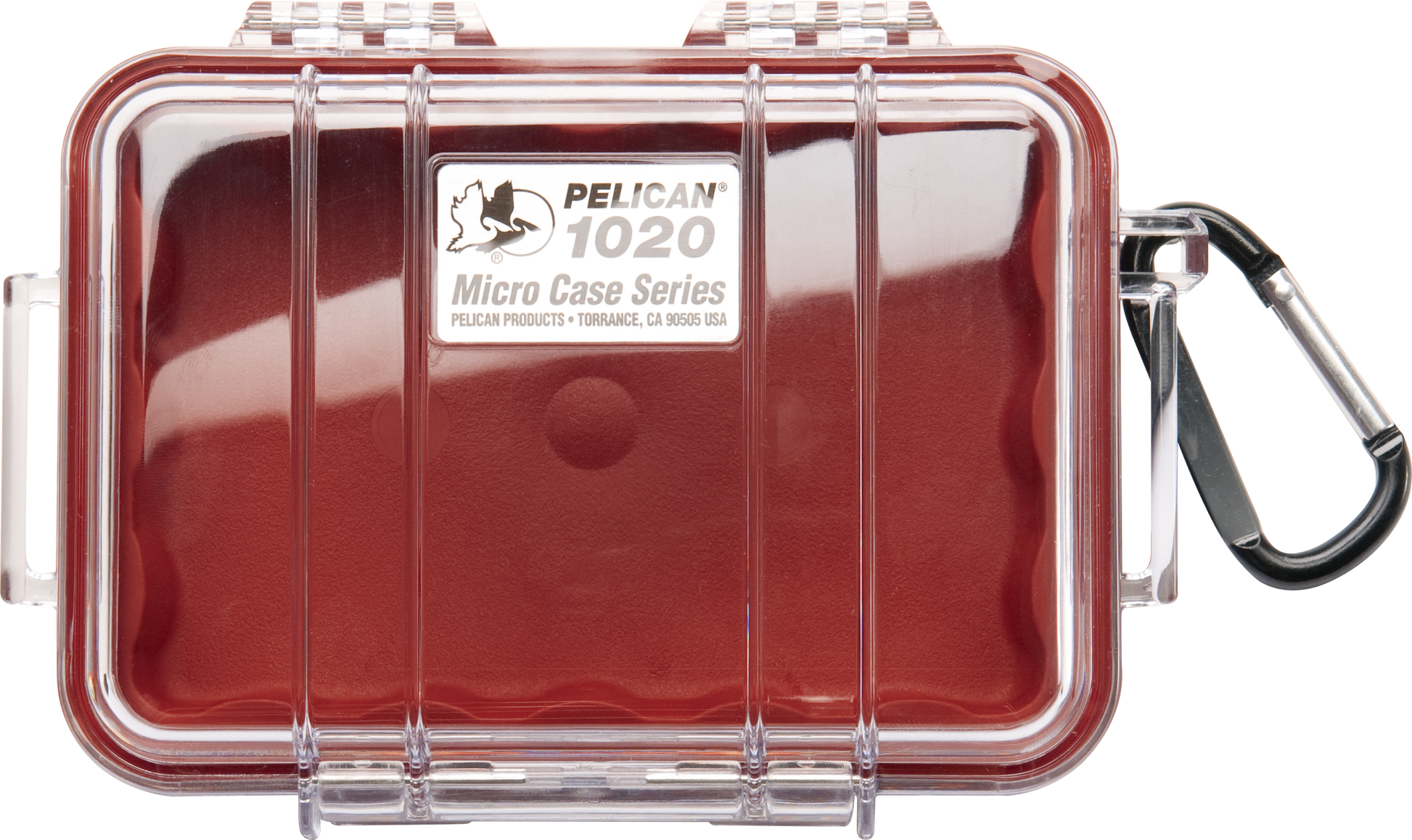

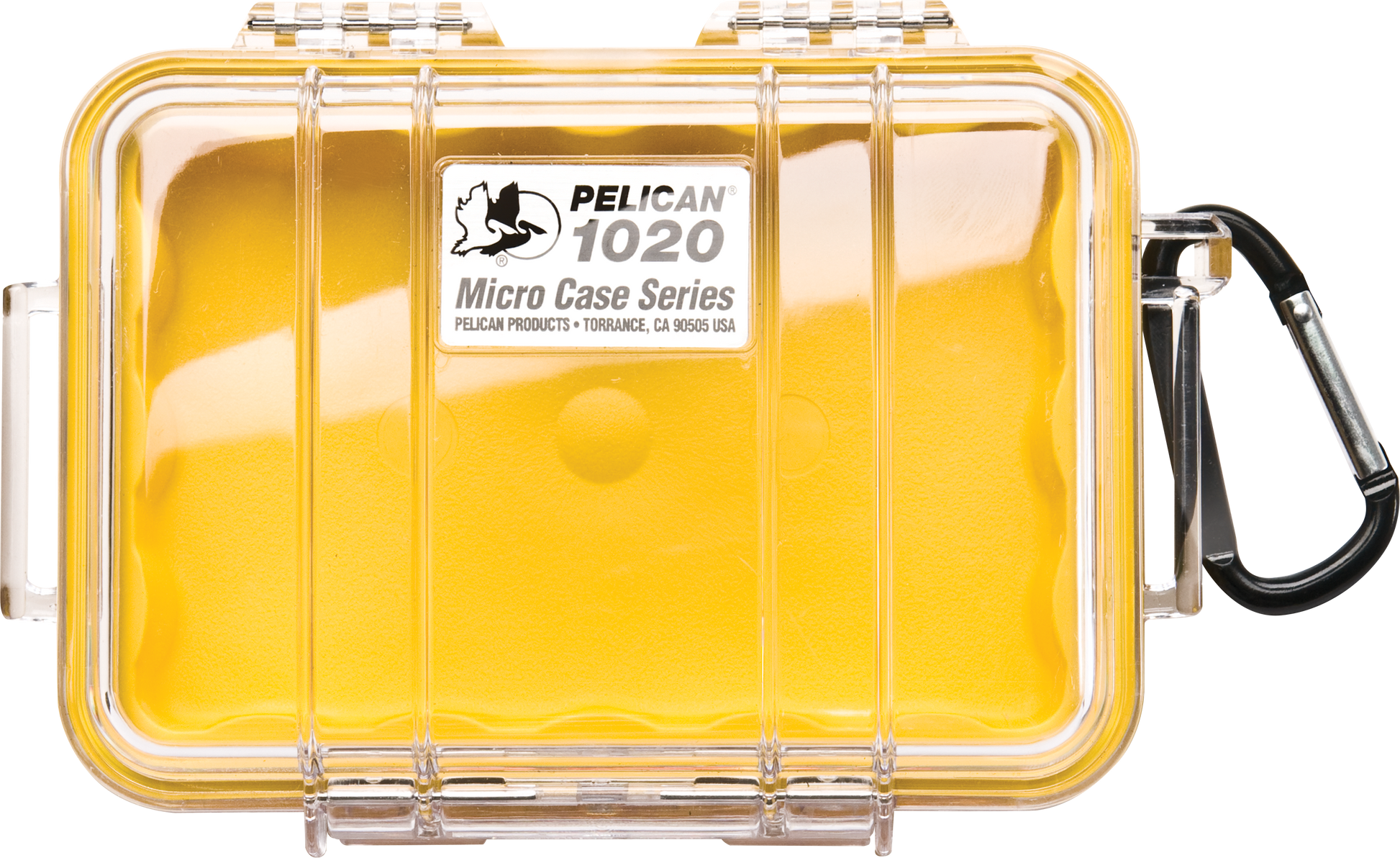

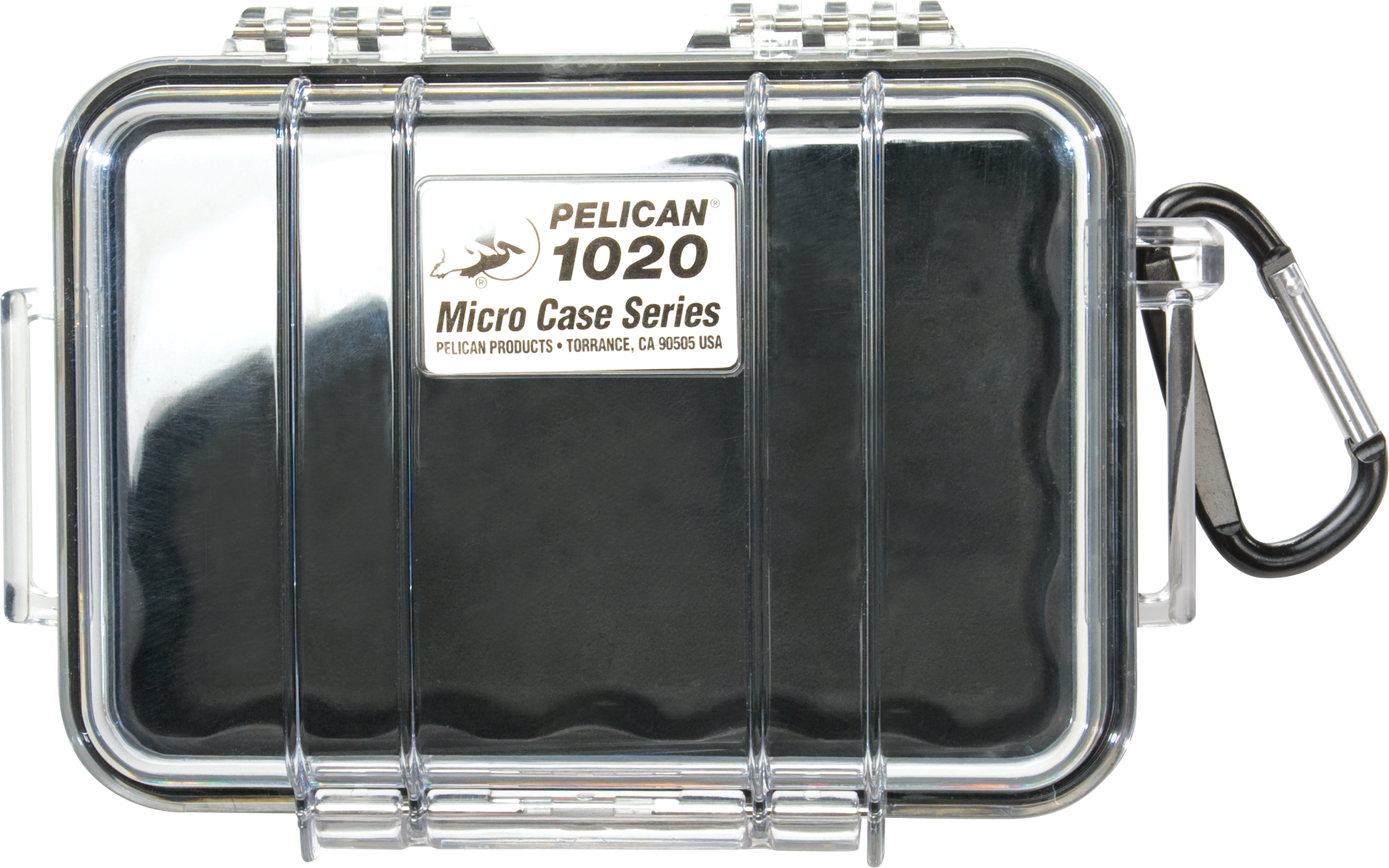

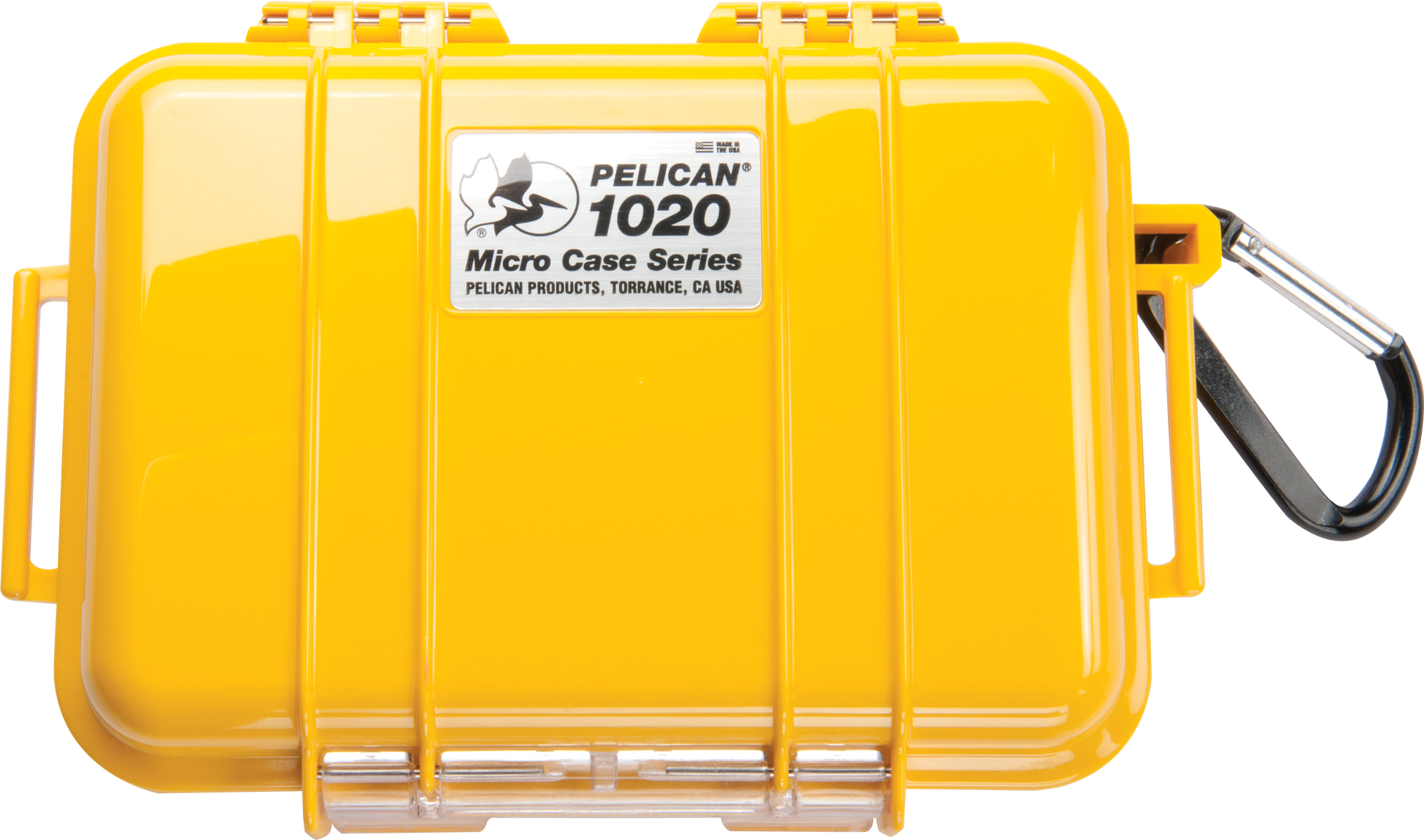

1020 Pelican™ Micro Case


From small sensitive components to smartphones, protect your gear from the elements in a crushproof, watertight, & dustproof Micro Case from Pelican.


  • Watertight, crushproof, and dustproof
  • Automatic Pressure Equalization Valve - balances interior pressure, keeps water out
  • Carabiner
  • Easy open latch
  • Lifetime Guarantee of Excellence
  • Rubber liner for extra protection doubles as o-ring seal
  • Stainless steel hardware
  • Case is able to be submerged under 1 meter of water for up to 30 minutes in accordance with IP67 testing parameters
  • Made in the USA


Exterior Dimensions: 6.82" x 4.75" x 2.12"
Interior Dimensions:  5.31" x 3.56" x 1.68"
Lid: 0.69"
Bottom: 0.94"
Weight with foam: 0.56 lbs
Weight without foam: 0.55 lbs
Foam insert can be found here.
Buoyancy: 0.75 lbs


Body Material: Polycarbonate (PC)
Latch Material: Xylex
O-Ring Material: Thermoplastic Rubber
Pins Material: Stainless Steel
Foam Material: TL - 426 4 lb. Esther
Purge Body Material: Polycarbonate (PC)
Purge Vent Material: Polyester Spun-Bond ePTFE Oleophobic
Foam Layer 1 (Lid): 0.13" - Pad
Foam Layer 2 (Base): 0.90" - Pick N Pluck
